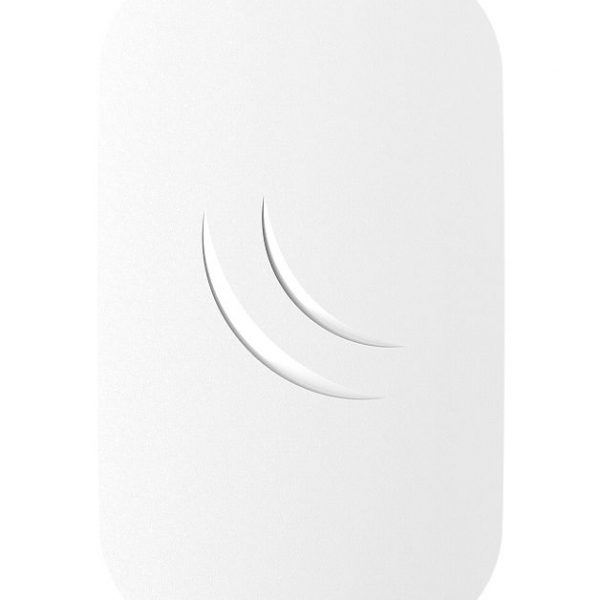

cAP Lite
Datasheet
Product specifications
| Details | |
|---|---|
| Product code | RBcAPL-2nD |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
| CPU nominal frequency | 650 MHz |
| 802.11b | Yes |
| 802.11g | Yes |
| 802.11n | Yes |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| Wireless chip model | QCA9533 |
| Wireless standards | 802.11b/g/n |
| PoE in | 802.3af/at |
| Supported input voltage | 5 V – 60 V |
| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| Operating System | RouterOS |
| Tested ambient temperature | -40°C .. +70°C |
| License level | 4 |
| Antenna gain | 1.5 |
| CPU | QCA9533 |
| Max Power consumption | 4W |
Specifications
| Details | |
|---|---|
| Product code | RBcAPL-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
| Suggested price | $29.00 |
Powering
| Details | |
|---|---|
| Max Power consumption | 4W |
| MicroUSB input Voltage | 5-5 V |
| PoE in | 802.3af/at |
| PoE in input Voltage | 10-60 V |
| Number of DC inputs | 2 (PoE-IN, MicroUSB) |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9533 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
